Editing Files: Developer Workflow¶

You can work with files for the Altair CP/M system in two primary ways:

External editor on your host (Recommended) – Edit locally with a modern editor such as Visual Studio Code. This gives you syntax highlighting, search, Copilot / LLM assistance, version control, etc.
On‑emulator editing (Word-Master) – Edit inside the emulated CP/M environment using the bundled Word-Master editor. Authentic, but slower and less ergonomic for substantial changes.

Editing Files with External Tools (Recommended)¶

Follow this fast loop for most development:

Pick an editor – Example: Visual Studio Code (with optional Copilot / LLM assistance).
Create a folder on your host computer to hold your source files.
Create or modify your source – Edit as normal on your host (BASIC, C, ASM, etc.).
Expose the directory over HTTP – Either:
- Use the VS Code Use the Visual Code Live Server (Five Server) extension extension, or
- Use a simple built‑in Python server:
```
python -m http.server 5500
```
Tell the Altair side where to fetch files – In the Altair web terminal, set the HTTP endpoint (only needed once per session):

Change to the B: drive first if not already there.
```
gf -e <your_ip_address>:5500
```
This corresponds to http://<your_ip_address>:5500.

Note, the endpoint is stored in a file on the emulated disk called gf.txt so it persists across emulator restarts.
Transfer a file into CP/M – From the CP/M prompt:
```
gf -f hello.bas
```
(File names are case‑insensitive; CP/M convention is uppercase.)
Run or build – Examples:
- BASIC: mbasic hello

Repeat steps 2, 5, and 6 as you refine your program.

GF Command Reference¶

The gf (Get File) utility is a versatile file transfer tool with multiple options for downloading files from web endpoints or the built-in games repository.

Getting Help¶

To see all available options and usage information:

gf --help

This displays the full help message with examples.

Setting the HTTP Endpoint¶

Set a custom HTTP or HTTPS endpoint URL for file transfers:

gf -e http://192.168.1.100:5500
gf -e https://example.com/files

The endpoint URL is automatically saved to gf.txt on the emulated disk and persists across emulator restarts.

Downloading Files from Your Endpoint¶

Download a specific file from the configured endpoint:

gf -f myfile.txt
gf -f hello.bas
gf -f program.c

File names are case-insensitive, following CP/M conventions.

Downloading Games from Built-in Repository¶

The gf utility includes access to a built-in games repository. Download games using:

gf -g love.bas
gf -g adventure.bas

This feature provides quick access to classic games without needing to set up your own web server.

Version Information¶

Check the current version of the GF utility:

gf --version

Complete Command Summary¶

GF (Get File) - File Transfer Utility v1.3
Transfer files from web over HTTP(s)

Usage: gf [--help] [--version] [-e <url>] [-f <filename>] [-g <gamefile>]

Options:
  --help       Show this help message
  --version    Show version information
  -e <url>     Set a custom HTTP/HTTPS endpoint URL
  -f <filename> Download a specific file from the configured endpoint
  -g <gamefile> Download a game file from the built-in games repository

Examples:
  gf -e http://localhost:5500     Set local development server
  gf -e https://example.com/files Set remote HTTPS endpoint
  gf -f myfile.txt                Download myfile.txt from configured endpoint
  gf -g love.bas                  Download love.bas from games repository

Automating Transfers & Builds with CP/M SUBMIT¶

The Submit command automates file transfer and build steps and is a a time-saver.

Prerequisite: Ensure the endpoint is already set (gf -e <your_ip_address>:5500).

On the B: drive there are two helper submit files: C.SUB and ASM.SUB.

They perform (a) fetch via gf -f, then (b) compile / assemble, then (c) link.

Examples:

Transfer, compile, and link a C source file¶

submit c hello

Info

The c.sub file fetches the source file, compiles it with BDS C, then links it to create hello.com.

gf -f $1.c
cc $1
clink $1 dxweb dxtimer

Now you can run the program:

hello

Transfer, assemble, and link an assembly source file¶

Change to the B: drive first if not already there.

submit asm vibe

Info

The asm.sub file fetches the source file, assembles it with ASM80, then links it to create demo.com.

gf -f $1.asm
d:asm $1
d:load $1
era $1.prn
era $1.hex

Now you can run the program:

vibe

Editing Files with the Word-Master Text Editor¶

The emulator bundles MicroPro Word-Master. Historically powerful, but spartan compared with modern editors.

Ten‑minute video introduction¶

Fastest workflow: edit with Visual Studio Code, then copy using gf. Watch the video for an overview:

▶ Video: Editing Files Workflow (YouTube)

If embedding is required later, update the markdown linter configuration to allow iframe (rule MD033) and restore the embed.

Editing inside Word-Master¶

Preferred path remains: local edit + gf transfer. But if you want the authentic experience:

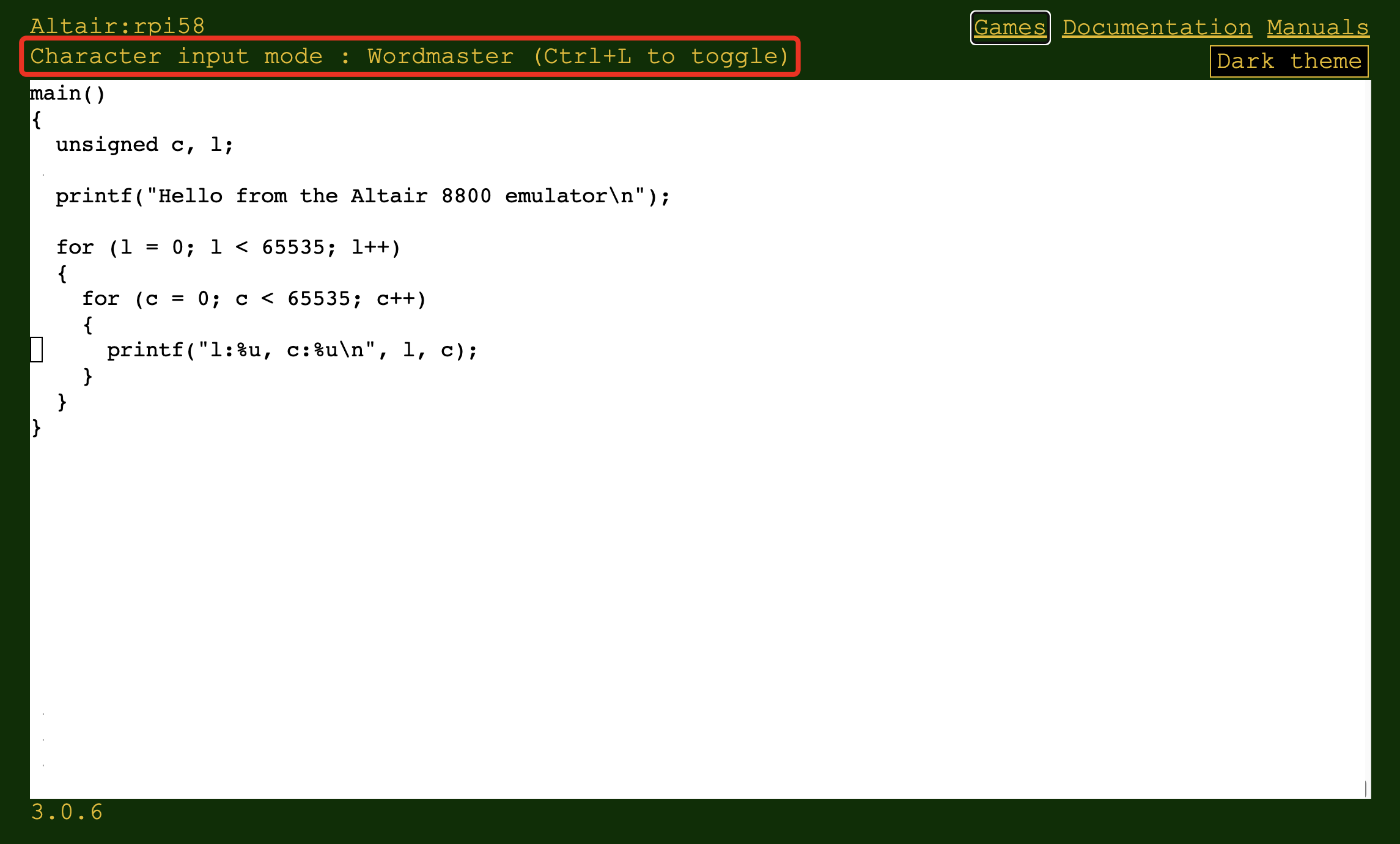

Toggle the web terminal to character mode (Ctrl+L).
Launch Word-Master (e.g., wm filename.asm).
Use the control key commands below for navigation / editing.
When finished, exit Word-Master, then toggle back to line mode (Ctrl+L) for faster terminal interaction.

For full details see the Word-Master user guide.

The following table lists the Ctrl characters that Word-Master uses. This list is sourced from the Experiencing the Altair 8800 blog.

VIDEO MODE SUMMARY

^O   INSERTION ON/OFF           RUB  DELETE CHR LEFT
^S   CURSOR LEFT CHAR           ^G   DELETE CHR RIGHT
^D   CURSOR RIGHT CHAR          ^\   DELETE WORD LEFT
^A   CURSOR LEFT WORD           ^T   DELETE WORD RIGHT
^F   CURSOR RIGHT WORD          ^U   DELETE LINE LEFT
^Q   CURSOR RIGHT TAB           ^K   DELETE LINE RIGHT
^E   CURSOR UP LINE             ^Y   DELETE WHOLE LINE
^X   CURSOR DOWN LINE           ^I   PUT TAB IN FILE
^^   CURSOR TOP/BOT SCREEN      ^N   PUT CRLF IN FILE
^B   CURSOR RIGHT/LEFT LINE     ^@   DO NEXT CHR 4X
^W   FILE DOWN 1 LINE           ^P   NEXT CHR IN FILE
^Z   FILE UP 1 LINE             ^V   NEXT CHR(S) TO VIDEO
^R   FILE DOWN SCREEN           ESC  EXIT VIDEO MODE
^C   FILE UP SCREEN             ^J   DISPLAY THIS

In character input mode, these host key mappings help mirror Word-Master's control sequences:

Keyboard key            Word-Master Ctrl Sequence
----------------------------------------------
Insert                  ^O   INSERTION ON/OFF
Delete                  ^G   DELETE CHR RIGHT
Cursor Left             ^S   CURSOR LEFT CHAR
Cursor Right            ^D   CURSOR RIGHT CHAR
Cursor Up               ^E   CURSOR UP LINE
Cursor Down             ^X   CURSOR DOWN LINE
